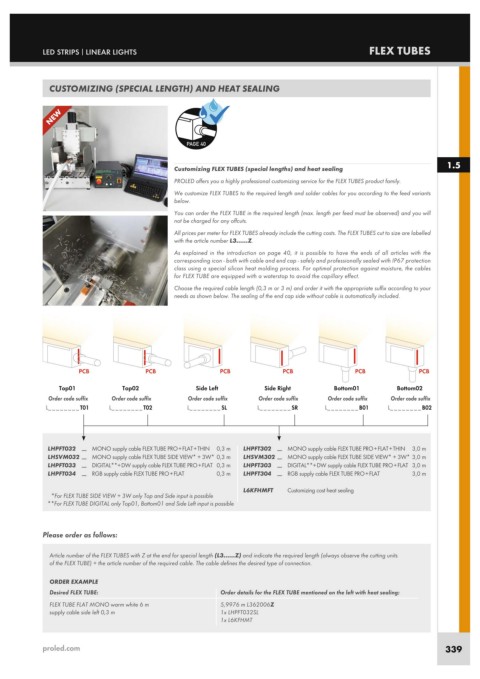

LED STRIPS | LINEAR LIGHTS FLEX TUBES

CUSTOMIZING (SPECIAL LENGTH) AND HEAT SEALING

NEW

PAGE 40
1.5
Customizing FLEX TUBES (special lengths) and heat sealing
PROLED offers you a highly professional customizing service for the FLEX TUBES product family.
We customize FLEX TUBES to the required length and solder cables for you according to the feed variants
below.
You can order the FLEX TUBE in the required length (max. length per feed must be observed) and you will
not be charged for any offcuts.
All prices per meter for FLEX TUBES already include the cutting costs. The FLEX TUBES cut to size are labelled
with the article number L3......Z.
As explained in the introduction on page 40, it is possible to have the ends of all articles with the
corresponding icon - both with cable and end cap - safely and professionally sealed with IP67 protection
class using a special silicon heat molding process. For optimal protection against moisture, the cables
for FLEX TUBE are equipped with a waterstop to avoid the capillary effect.
Choose the required cable length (0,3 m or 3 m) and order it with the appropriate suffix according to your
needs as shown below. The sealing of the end cap side without cable is automatically included.

PCB PCB PCB PCB PCB PCB

Top01 Top02 Side Left Side Right Bottom01 Bottom02
Order code suffix Order code suffix Order code suffix Order code suffix Order code suffix Order code suffix
L_ _ _ _ _ _ _ _ T01 L_ _ _ _ _ _ _ _ T02 L_ _ _ _ _ _ _ _ SL L_ _ _ _ _ _ _ _ SR L_ _ _ _ _ _ _ _ B01 L_ _ _ _ _ _ _ _ B02

LHPFT032 __ MONO supply cable FLEX TUBE PRO + FLAT + THIN 0,3 m LHPFT302 __ MONO supply cable FLEX TUBE PRO + FLAT + THIN 3,0 m
LHSVM032 __ MONO supply cable FLEX TUBE SIDE VIEW* + 3W* 0,3 m LHSVM302 __ MONO supply cable FLEX TUBE SIDE VIEW* + 3W* 3,0 m
LHPFT033 __ DIGITAL**+ DW supply cable FLEX TUBE PRO + FLAT 0,3 m LHPFT303 __ DIGITAL**+ DW supply cable FLEX TUBE PRO + FLAT 3,0 m
LHPFT034 __ RGB supply cable FLEX TUBE PRO + FLAT 0,3 m LHPFT304 __ RGB supply cable FLEX TUBE PRO + FLAT 3,0 m
L6KFHMFT Customizing cost heat sealing
*For FLEX TUBE SIDE VIEW + 3W only Top and Side input is possible
**For FLEX TUBE DIGITAL only Top01, Bottom01 and Side Left input is possible

Please order as follows:

Article number of the FLEX TUBES with Z at the end for special length (L3......Z) and indicate the required length (always observe the cutting units
of the FLEX TUBE) + the article number of the required cable. The cable defines the desired type of connection.

ORDER EXAMPLE
Desired FLEX TUBE: Order details for the FLEX TUBE mentioned on the left with heat sealing:
FLEX TUBE FLAT MONO warm white 6 m 5,9976 m L362006Z
supply cable side left 0,3 m 1x LHPFT032SL
1x L6KFHMT

proled.com 339
