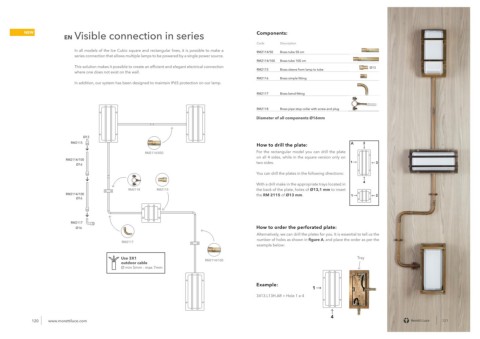

NEW Visible connection in series Components:
EN
Code Description
In all models of the Ice Cubic square and rectangular lines, it is possible to make a RM2114/50 Brass tube 50 cm
series connection that allows multiple lamps to be powered by a single power source.
RM2114/100 Brass tube 100 cm
This solution makes it possible to create an eff cient and elegant electrical connection RM2115 Brass sleeve from lamp to tube Ø13
where one does not exist on the wall.
RM2116 Brass simple f tting
In addition, our system has been designed to maintain IP65 protection on our lamp.
RM2117 Brass bend f tting

RM2118 Brass pipe stop collar with screw and plug
Diameter of all components Ø16mm

Ø13
RM2115 A 2
How to drill the plate:
RM2114/050 For the rectangular model you can drill the plate
on all 4 sides, while in the square version only on
RM2114/100 1
Ø16 two sides. 3
You can drill the plates in the following directions:
4
With a drill make in the appropriate trays located in
RM2118 RM2115 the back of the plate, holes of Ø13,1 mm to insert
RM2114/100 the RM 2115 of Ø13 mm. 1 2
Ø16

RM2117
Ø16 o to or er t e erforate ate
Alternatively, we can drill the plates for you. It is essential to tell us the
number of holes as shown in f gure A, and place the order as per the
RM2117
example below:
Use 3X1 RM2114/100 Tray
outdoor cable
Ø min 5mm - max 7mm

Example:
1
3413.L13H.AR + Hole 1 e 4
