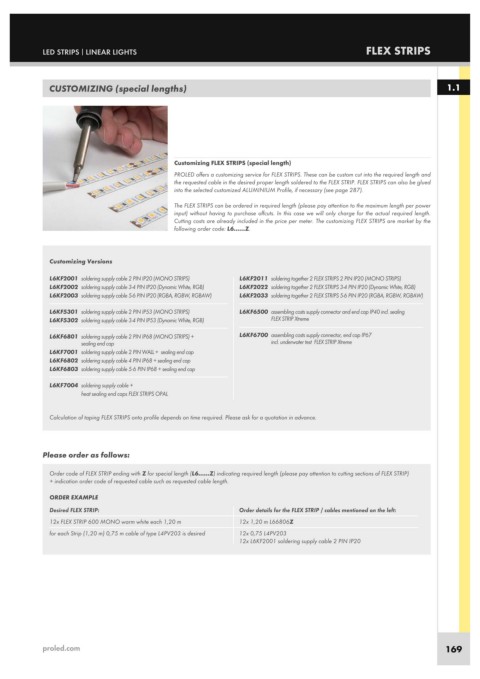

LED STRIPS | LINEAR LIGHTS FLEX STRIPS

CUSTOMIZING (special lengths) 1.1

Customizing FLEX STRIPS (special length)
PROLED offers a customizing service for FLEX STRIPS. These can be custom cut into the required length and
the requested cable in the desired proper length soldered to the FLEX STRIP. FLEX STRIPS can also be glued
into the selected customized ALUMINIUM Profile, if necessary (see page 287).
The FLEX STRIPS can be ordered in required length (please pay attention to the maximum length per power
input) without having to purchase offcuts. In this case we will only charge for the actual required length.
Cutting costs are already included in the price per meter. The customizing FLEX STRIPS are market by the
following order code: L6…...Z.

Customizing Versions
L6KF2001 soldering supply cable 2 PIN IP20 (MONO STRIPS) L6KF2011 soldering together 2 FLEX STRIPS 2 PIN IP20 (MONO STRIPS)
L6KF2002 soldering supply cable 3-4 PIN IP20 (Dynamic White, RGB) L6KF2022 soldering together 2 FLEX STRIPS 3-4 PIN IP20 (Dynamic White, RGB)
L6KF2003 soldering supply cable 5-6 PIN IP20 (RGBA, RGBW, RGBAW) L6KF2033 soldering together 2 FLEX STRIPS 5-6 PIN IP20 (RGBA, RGBW, RGBAW)

L6KF5301 soldering supply cable 2 PIN IP53 (MONO STRIPS) L6KF6500 assembling costs supply connector and end cap IP40 incl. sealing
L6KF5302 soldering supply cable 3-4 PIN IP53 (Dynamic White, RGB) FLEX STRIP Xtreme

L6KF6801 soldering supply cable 2 PIN IP68 (MONO STRIPS) + L6KF6700 assembling costs supply connector, end cap IP67
sealing end cap incl. underwater test FLEX STRIP Xtreme
L6KF7001 soldering supply cable 2 PIN WALL + sealing end cap
L6KF6802 soldering supply cable 4 PIN IP68 + sealing end cap
L6KF6803 soldering supply cable 5-6 PIN IP68 + sealing end cap

L6KF7004 soldering supply cable +
heat sealing end caps FLEX STRIPS OPAL

Calculation of taping FLEX STRIPS onto profile depends on time required. Please ask for a quotation in advance.

Please order as follows:

Order code of FLEX STRIP ending with Z for special length (L6……Z) indicating required length (please pay attention to cutting sections of FLEX STRIP)
+ indication order code of requested cable such as requested cable length.
ORDER EXAMPLE
Desired FLEX STRIP: Order details for the FLEX STRIP / cables mentioned on the left:
12x FLEX STRIP 600 MONO warm white each 1,20 m 12x 1,20 m L66806Z
for each Strip (1,20 m) 0,75 m cable of type L4PV203 is desired 12x 0,75 L4PV203
12x L6KF2001 soldering supply cable 2 PIN IP20
